A specialized C-UAS command & control system that integrates and controls anti-drone devices.
➖ Detect and analyzing all drones in the designated airspace. ➖ Building and continuously updating a drone database powered by Deep Learning and AI. ➖ Full integration and compatibility within the platform, even with third-party products.

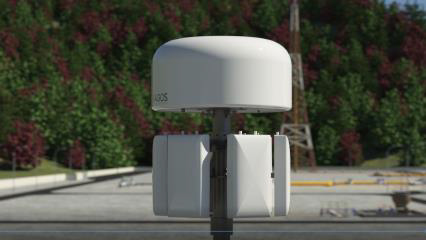

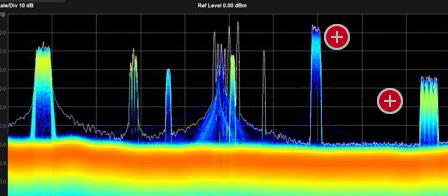

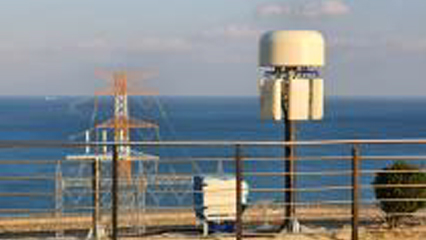

RF scanner detects control and video signals of drones in real time, enable drone identification and direction finding.
➖ Provides AOA-based direction finding and position tracking by high-speed scan data processing. ➖ With multiple RF scanners, AI algorithms accurately calculate drone positions. ➖ Real-time signal direction detecting and automatically transmits analysis results to servers and operator. ➖ Uses deep learning and AI-based to accurately identify drones and continuously update database.
AI-Assisted Drone Detection
Advanced Drone Blocking
Plug&Play 100% Protection
VIP Support Customization Support
Direction-Finding Accuracy: RMS error within 5° (based on actual environment)
Detection Range: Up to 5 km (depending on drone type/output power)
Detection Coverage: Horizontal 360°, Vertical 60°
Direction-Finding Method: AOA (Angle of Arrival)
Drone Identification Standard: Capable of identifying more than 120 commercial drones (DJI, Autel, Yuneec, Hubsan, FPV, GoPro, etc.)
Detection Information: Provides drone and operator location, model, latitude/longitude, and altitude-based drone direction finding and position estimation through cross-tracking
Model : SDCS-300

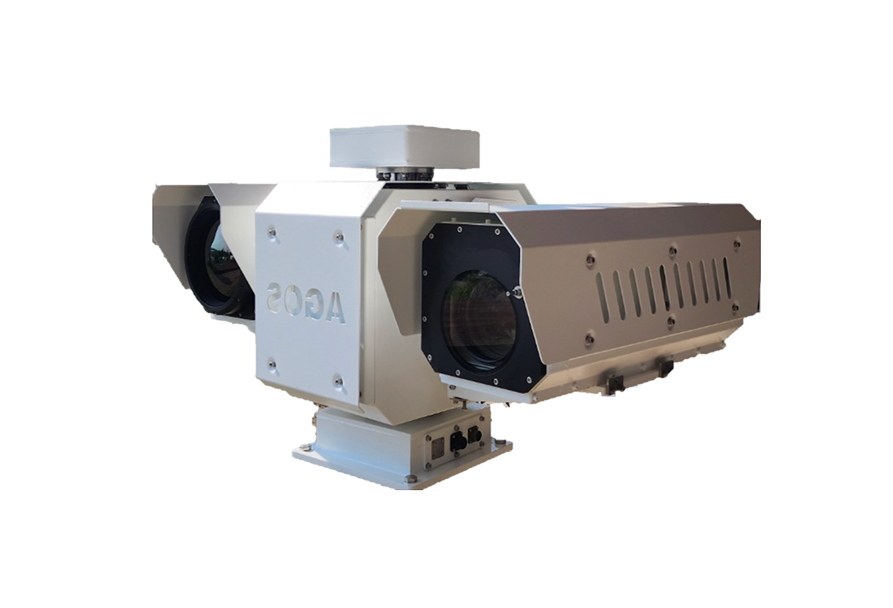

EO/IR Camera (Drone tracking)
AI video analysis for real-time drone detection and tracking.
AI deep learning-based real-time detection and classification
Manual and automatic detection / target lock-on
Automatic and manual zoom-in/out
➖ Customizable Options : High-performance EO/IR cameras (NWIR, LWIR), laser range finders (LRF), Precision pan-tilts, and more. ➖ AI-Powered Analysis : Real-time tracking and identification of aerial objects. ➖ Detection & Identification Range : Optical 3–5 km / Infrared 2–3 km (DJI Phantom) ➖ Diverse Optical Solutions : Cooled NWIR, uncooled LWIR, various laser illuminators, EO cameras with multiple focal lengths. ➖ Integrated Operations : Supports interoperability with radars and RF scanners.
IP Rating: IP66
Operating Temperature: 1~33℃ ≤ Ta ≤ 60℃
Input Voltage: AC 100~240V 50/60Hz
Power Consumption: Max 300W, Standby 30W
Pan tilt: - PAN Angle: 360° Endless - PAN Speed: 0.001°/s ~ 70°/s - TILT Angle: -70° ~ +90° (Max. -90° ~ +180°) - TILT Speed: 0.001°/s ~ 40°/s
Additional Features: - Automatic drone detection and tracking - Environmental filter functions (snow, rain, fog, haze, fine dust, etc.)
Model : RF Jammer

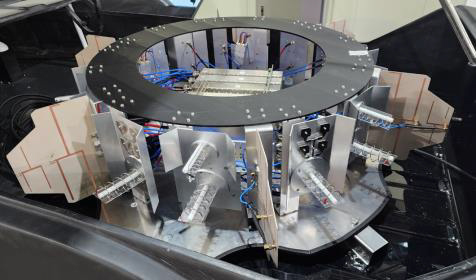

RF Jammer (Drone neutralization)
Fixed & Mobile Anti-Drone Jammers for Critical Infrastructure Protection.
SJV-300
SJS-300
➖ Designed to cover ISM bands and GNSS L1, L2, and L5 frequencies. ➖ Capable of neutralizing single or multiple drones within antenna beam range at distances up to 5 km. ➖ Equipped with a high-power amplifier and signal generator for continuous multi-band jamming. ➖ Customizable RF jamming configurations: directional and omnidirectional. ➖ The integrated control system links with detection and identification devices, enabling efficient operation through the positioner.
Frequency Bands: - 2.4GHz ISM : 2,400 ~ 2,485MHz (AZ / EL : 40° ±10°) - 5.8GHz ISM : 5,725 ~ 5,875MHz (AZ / EL : 40° ±10°) - GNSS L1 : 1,559 ~ 1,610MHz (AZ / EL : 40° ±10°) - GNSS L2, L5 : 1,164 ~ 1,300MHz (AZ / EL : 40° ±10°)
Jamming Range: ~5km
Cooling Method: Forced Air Cooling
Jamming Signal Method: Noise modulation-based linear FM
Operating Temperature: - -32℃ ~ +49℃
Power Supply: - 28 VDC (A power supply unit will be supplied.)

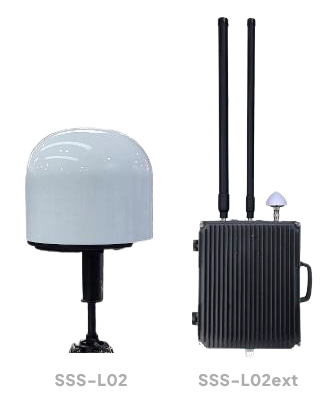

A fixed protection system based on satellite navigation technology, providing both automatic and manual defense against drone invasion.
➖ 360° simultaneous defense against multiple drones for critical infrastructure, public institutions, and military facilities. ➖ Real-time interception and forced-evacuation with selectable retreat direction ➖ Drone neutralization without affecting wireless or mobile communications ➖ Low-power, unmanned, 24/7 all-round defense system ➖ Supports latest GNSS systems (GPS, GLONASS, BeiDou, Galileo / L1, L2, L5) ➖ Fixed protection system applying directional spoofing technology ➖ Defense radius: 500 m – 3 km
➖ Vehicle-based C-UAS system customized to diverse customer requirements. ➖ Optimized integration and operation for both civilian and military vehicles. ➖ Hybrid response system with directional and omnidirectional RF jamming. ➖ All-in-one platform for detection, identification, and neutralization. (RF scanning, electronic radar-based target detection, EO-based tracking and classification.)
Mobile C-UAS systems delivered and in operational use for VIP protection.
Developing military mobile equipment on the K351C light tactical vehicle platform.
